Magnetic Drive Chemical Pumps
The primary feature of magnetic drive chemical pumps is the use of a hermetically sealed magnetic drive assembly. This assembly consists of an outer magnet attached to the motor shaft and an inner magnet connected to the impeller. These magnets are positioned in such a way that they create a magnetic field across a containment shell, effectively sealing off the pumped fluid from the atmosphere.
The magnetic coupling between the motor and impeller allows for the transfer of torque from the motor to the impeller without the need for any physical connection. This design prevents any potential leakage points that could occur with traditional shaft seals, enhancing the overall safety and reliability of the pump.
One of the advantages of magnetic drive chemical pump Malaysia is their precise and efficient operation. The magnetic coupling eliminates the need for complex mechanical parts, resulting in reduced friction and energy losses. This design allows for smooth and consistent pumping performance while minimizing power consumption.
MP Series Magnetic Drive Pump
-
MP-10R Sealless Magnetic Drive Pump
Suction x Discharge: 14mm x 14mm (Tube)
Frequency: 50/60Hz
Max Capacity: 11/12 (L/min)
Max Head: 1.5/2.1 (m)
Motor Output: 6W
Available Material: GFRPP, PVDF
-
MP-15R Sealless Magnetic Drive Pump
Suction x Discharge: 16mm x 16mm (Tube)
Frequency: 50/60Hz
Max Capacity: 16/19 (L/min)
Max Head: 2.4/3.4 (m)
Motor Output: 10W
Available Material: GFRPP, PVDF
-
MP-30RM Sealless Magnetic Drive Pump
Suction x Discharge: 20mm x 20mm (Tube)
Frequency: 50/60Hz
Max Capacity: 32/38 (L/min)
Max Head: 3.8/5.4 (m)
Motor Output: 45W
Available Material: GFRPP, PVDF
-
MP-30RZ Sealless Magnetic Drive Pump
Suction x Discharge: 17.5mm x 17mm (Tube)
Frequency: 50/60Hz
Max Capacity: 15/17 (L/min)
Max Head: 8/11 (m)
Motor Output: 45W
Available Material: GFRPP, PVDF
-
MP-40RM Sealless Magnetic Drive Pump
Suction x Discharge: G3/4 x G3/4
Frequency: 50/60Hz
Max Capacity: 45/52 (L/min)
Max Head: 4.6/6.5 (m)
Motor Output: 65W
Available Material: GFRPP, PVDF
-
MP-40RZ Sealless Magnetic Drive Pump
Suction x Discharge: 20mm x 20mm
Frequency: 50/60Hz
Max Capacity: 22 (L/min)
Max Head: 10/13.5 (m)
Motor Output: 65W
Available Material: GFRPP, PVDF
-
MP-55R Sealless Magnetic Drive Pump
Suction x Discharge: 26mm x 26mm
Frequency: 50/60Hz
Max Capacity: 60/70 (L/min)
Max Head: 5.6/8.2 (m)
Motor Output: 90W
Available Material: GFRPP, PVDF
-
MP-55RM Sealless Magnetic Drive Pump
Suction x Discharge: G1 x G1
Frequency: 50/60Hz
Max Capacity: 60/70 (L/min)
Max Head: 5.6/8.2 (m)
Motor Output: 90W
Available Material: GFRPP, PVDF
-
MP-70RM Sealless Magnetic Drive Pump
Suction x Discharge: G1 x G1
Frequency: 50/60Hz
Max Capacity: 86/97 (L/min)
Max Head: 6.7/9.7 (m)
Motor Output: 150/180W
Available Material: GFRPP, PVDF
-
MP-70RZM Sealless Magnetic Drive Pump
Suction x Discharge: G3/4 x G3/4
Frequency: 50/60Hz
Max Capacity: 40/43 (L/min)
Max Head: 14.3/20.3 (m)
Motor Output: 180/216W
Available Material: GFRPP, PVDF
-
MP-120RM Sealless Magnetic Drive Pump
Suction x Discharge: G1 1/2 x G1 1/2
Frequency: 50/60Hz
Max Capacity: 220 (L/min)
Max Head: 10.5 (m)
Motor Output: 370W
Available Material: GFRPP, PVDF
-
MP-100RM Sealless Magnetic Drive Pump
Suction x Discharge: G1 x G1
Frequency: 50/60Hz
Max Capacity: 120/135 (L/min)
Max Head: 8.6/11.9 (m)
Motor Output: 260/265W
Available Material: GFRPP, PVDF
AMA Series High Head Magnetic Drive Pump
-
AMA-220 High Head Sealless Magnetic Drive Pump
Suction x Discharge: 25A x 25A
Frequency: 50/60Hz
Max Capacity: 150 (L/min)
Max Head: 16 (m)
Motor Output: 0.375kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-221 High Head Sealless Magnetic Drive Pump
Suction x Discharge: 25A x 25A
Frequency: 50/60Hz
Max Capacity: 180 (L/min)
Max Head: 22 (m)
Motor Output: 0.75kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-222 High Head Sealless Magnetic Drive Pump
Suction x Discharge: 25A x 25A
Frequency: 50/60Hz
Max Capacity: 180 (L/min)
Max Head: 36 (m)
Motor Output: 1.5kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-223 High Head Sealless Magnetic Drive Pump
Suction x Discharge: 25A x 25A
Frequency: 50/60Hz
Max Capacity: 180 (L/min)
Max Head: 38 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-440 High Head Sealless Magnetic Drive Pump
Suction x Discharge: 40A x 40A
Frequency: 50/60Hz
Max Capacity: 240 (L/min)
Max Head: 19.5 (m)
Motor Output: 0.375kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-441 High Head Sealless Magnetic Drive Pump
Suction x Discharge: 40A x 40A
Frequency: 50/60Hz
Max Capacity: 330 (L/min)
Max Head: 19.5 (m)
Motor Output: 0.75kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-542 High Head Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50/60Hz
Max Capacity: 450 (L/min)
Max Head: 25.5 (m)
Motor Output: 1.5kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-542H High Head Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 50A
Frequency: 50/60Hz
Max Capacity: 250/150 (L/min)
Max Head: 27.5/30.5 (m)
Motor Output: 1.5kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-543 High Head Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50/60Hz
Max Capacity: 500 (L/min)
Max Head: 31.5 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-543H High Head Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50/60Hz
Max Capacity: 300/250 (L/min)
Max Head: 34/36 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-545 High Head Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50/60Hz
Max Capacity: 520 (L/min)
Max Head: 35/39 (m)
Motor Output: 3.75kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-552 High Head Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 50A
Frequency: 50/60Hz
Max Capacity: 450 (L/min)
Max Head: 25.5 (m)
Motor Output: 1.5kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-552H High Head Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 50A
Frequency: 50/60Hz
Max Capacity: 250/150 (L/min)
Max Head: 27.5/30.5 (m)
Motor Output: 1.5kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-553 High Head Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 50A
Frequency: 50/60Hz
Max Capacity: 500 (L/min)
Max Head: 31.5 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-553H High Head Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 50A
Frequency: 50/60Hz
Max Capacity: 300/250 (L/min)
Max Head: 34/36 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-555 High Head Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 50A
Frequency: 50/60Hz
Max Capacity: 520 (L/min)
Max Head: 35/39 (m)
Motor Output: 3.75kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-653 High Head Sealless Magnetic Drive Pump
Suction x Discharge: 65A x 50A
Frequency: 50/60Hz
Max Capacity: 600 (L/min)
Max Head: 20 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMA-655 High Head Sealless Magnetic Drive Pump
Suction x Discharge: 65A x 50A
Frequency: 50/60Hz
Max Capacity: 860 (L/min)
Max Head: 28.5 (m)
Motor Output: 3.75kW
Available Material: GFRPP, PVDF,CFRETFE
AMD Series Large Capacity Magnetic Drive Pump
-

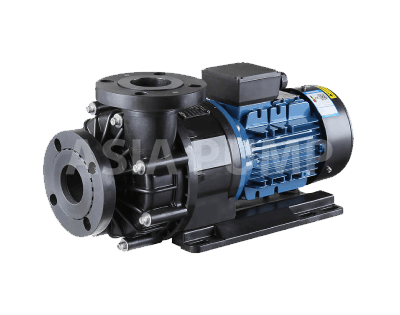

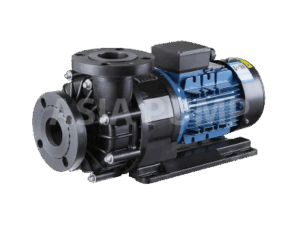

AMD-662 Large Capacity Sealless Magnetic Drive Pump
Suction x Discharge: 65A x 65A
Frequency: 50/60Hz
Max Capacity: 900/850 (L/min)
Max Head: 14/15 (m)
Motor Output: 1.5kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMD-663 Large Capacity Sealless Magnetic Drive Pump
Suction x Discharge: 65A x 65A
Frequency: 50/60Hz
Max Capacity: 1050/1000 (L/min)
Max Head: 17/18 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMD-665 Large Capacity Sealless Magnetic Drive Pump
Suction x Discharge: 65A x 65A
Frequency: 50/60Hz
Max Capacity: 1230/1250 (L/min)
Max Head: 21/23 (m)
Motor Output: 3.75kW
Available Material: GFRPP, PVDF,CFRETFE
AME Series ETFE-Lined Magnetic Drive Pump
-
AME-420 ETFE-Lined Sealless Magnetic Drive Pump
Suction x Discharge: 40A x 25A
Frequency: 50/60Hz
Max Capacity: 150 (L/min)
Max Head: 13/12 (m)
Motor Output: 0.375kW
Available Material: Cast Iron Lined with CFRETFE
-
AME-441 ETFE-Lined Sealless Magnetic Drive Pump
Suction x Discharge: 40A x 40A
Frequency: 50/60Hz
Max Capacity: 330 (L/min)
Max Head: 19.5 (m)
Motor Output: 0.75kW
Available Material: Cast Iron Lined with CFRETFE
-
AME-542 ETFE-Lined Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50/60Hz
Max Capacity: 450 (L/min)
Max Head: 25.5 (m)
Motor Output: 1.5kW
Available Material: Cast Iron Lined with CFRETFE
-
AME-542H ETFE-Lined Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50/60Hz
Max Capacity: 250/220 (L/min)
Max Head: 28/31 (m)
Motor Output: 1.5kW
Available Material: Cast Iron Lined with CFRETFE
-
AME-543 ETFE-Lined Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50/60Hz
Max Capacity: 500 (L/min)
Max Head: 31.5 (m)
Motor Output: 2.2kW
Available Material: Cast Iron Lined with CFRETFE
-
AME-543H ETFE-Lined Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50/60Hz
Max Capacity: 250 (L/min)
Max Head: 35/36 (m)
Motor Output: 2.2kW
Available Material: Cast Iron Lined with CFRETFE
-
AME-545 ETFE-Lined Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50/60Hz
Max Capacity: 520 (L/min)
Max Head: 36/40 (m)
Motor Output: 3.75kW
Available Material: Cast Iron Lined with CFRETFE
-
AME-653 ETFE-Lined Sealless Magnetic Drive Pump
Suction x Discharge: 65A x 50A
Frequency: 50/60Hz
Max Capacity: 600 (L/min)
Max Head: 20 (m)
Motor Output: 2.2kW
Available Material: Cast Iron Lined with CFRETFE
-
AME-655 ETFE-Lined Sealless Magnetic Drive Pump
Suction x Discharge: 65A x 50A
Frequency: 50/60Hz
Max Capacity: 860 (L/min)
Max Head: 28/29 (m)
Motor Output: 3.75kW
Available Material: Cast Iron Lined with CFRETFE
AMX Series Magnetic Drive Pump
-
AMX-440 Sealless Magnetic Drive Pump
Suction x Discharge: 40A x 40A
Frequency: 50/60Hz
Max Capacity: 240 (L/min)
Max Head: 12/13 (m)
Motor Output: 0.375kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMX-441 Sealless Magnetic Drive Pump
Suction x Discharge: 40A x 40A
Frequency: 50/60Hz
Max Capacity: 330 (L/min)
Max Head: 19 (m)
Motor Output: 0.75kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMX-542 Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 50A
Frequency: 50Hz
Max Capacity: 450 (L/min)
Max Head: 24.5 (m)
Motor Output: 1.5kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMX-542H Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50Hz
Max Capacity: 250 (L/min)
Max Head: 27.5 (m)
Motor Output: 1.5kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMX-543 Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50Hz
Max Capacity: 510 (L/min)
Max Head: 31 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMX-543H Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50Hz
Max Capacity: 300 (L/min)
Max Head: 34 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMX-545 Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50Hz
Max Capacity: 500 (L/min)
Max Head: 35 (m)
Motor Output: 3.75kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMX-552 Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 50A
Frequency: 60Hz
Max Capacity: 450 (L/min)
Max Head: 25.5 (m)
Motor Output: 1.5kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMX-552H Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 60Hz
Max Capacity: 150 (L/min)
Max Head: 30.5 (m)
Motor Output: 1.5kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMX-553 Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 60Hz
Max Capacity: 510 (L/min)
Max Head: 31 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMX-553H Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 60Hz
Max Capacity: 250 (L/min)
Max Head: 36 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMX-555 Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 50A
Frequency: 60Hz
Max Capacity: 500 (L/min)
Max Head: 39 (m)
Motor Output: 3.75kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMX-653 Sealless Magnetic Drive Pump
Suction x Discharge: 65A x 50A
Frequency: 50/60Hz
Max Capacity: 600 (L/min)
Max Head: 20 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF,CFRETFE
-
AMX-655 Sealless Magnetic Drive Pump
Suction x Discharge: 65A x 50A
Frequency: 50/60Hz
Max Capacity: 860 (L/min)
Max Head: 27.5/28 (m)
Motor Output: 3.75kW
Available Material: GFRPP, PVDF,CFRETFE
MPX Series Magnetic Drive Pump
-
MPX-100M Sealless Magnetic Drive Pump
Suction x Discharge: G1 x G1
Frequency: 50/60Hz
Max Capacity: 110/125 (L/min)
Max Head: 8.5/11.7 (m)
Motor Output: 0.26kW
Available Material: GFRPP, PVDF,CFRETFE
-
MPX-220 Sealless Magnetic Drive Pump
Suction x Discharge: 25A x 25A
Frequency: 50/60Hz
Max Capacity: 150 (L/min)
Max Head: 15.5 (m)
Motor Output: 0.4kW
Available Material: GFRPP, PVDF,CFRETFE
-
MPX-221 Sealless Magnetic Drive Pump
Suction x Discharge: 25A x 25A
Frequency: 50/60Hz
Max Capacity: 150 (L/min)
Max Head: 22 (m)
Motor Output: 0.75kW
Available Material: GFRPP, PVDF,CFRETFE
-
MPX-440 Sealless Magnetic Drive Pump
Suction x Discharge: 40A x 40A
Frequency: 50/60Hz
Max Capacity: 280 (L/min)
Max Head: 12.5/10.5 (m)
Motor Output: 0.4kW
Available Material: GFRPP, PVDF,CFRETFE
-
MPX-441 Sealless Magnetic Drive Pump
Suction x Discharge: 40A x 40A
Frequency: 50/60Hz
Max Capacity: 320 (L/min)
Max Head: 17.5/16.8 (m)
Motor Output: 0.75kW
Available Material: GFRPP, PVDF,CFRETFE
-
MPX-452 Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50/60Hz
Max Capacity: 450 (L/min)
Max Head: 27/23.5 (m)
Motor Output: 1.5kW
Available Material: GFRPP, PVDF,CFRETFE
-
MPX-452H Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50/60Hz
Max Capacity: 160/140 (L/min)
Max Head: 31.5 (m)
Motor Output: 1.5kW
Available Material: GFRPP, PVDF,CFRETFE
-
MPX-453 Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50/60Hz
Max Capacity: 500 (L/min)
Max Head: 30.7/30 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF,CFRETFE
-
MPX-453H Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50/60Hz
Max Capacity: 300/250 (L/min)
Max Head: 35.7/37 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF,CFRETFE
-
MPX-565 Sealless Magnetic Drive Pump
Suction x Discharge: 65A x 50A
Frequency: 50/60Hz
Max Capacity: 800 (L/min)
Max Head: 27/26.5 (m)
Motor Output: 3.75kW
Available Material: GFRPP, PVDF,CFRETFE
-
MPX-70M Sealless Magnetic Drive Pump
Suction x Discharge: G1 x G1
Frequency: 50/60Hz
Max Capacity: 90/100 (L/min)
Max Head: 8/11 (m)
Motor Output: 0.15/0.18kW
Available Material: GFRPP, PVDF,CFRETFE
MPH Series Magnetic Drive Pump
-
MPH-440 Sealless Magnetic Drive Pump
Suction x Discharge: 40A x 40A
Frequency: 50/60Hz
Max Capacity: 280 (L/min)
Max Head: 12.5/11.5 (m)
Motor Output: 0.375kW
Available Material: GFRPP, PVDF, CFRETFE
-
MPH-441 Sealless Magnetic Drive Pump
Suction x Discharge: 40A x 40A
Frequency: 50/60Hz
Max Capacity: 330/320 (L/min)
Max Head: 18/18.5 (m)
Motor Output: 0.75kW
Available Material: GFRPP, PVDF, CFRETFE
-
MPH-452 Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50/60Hz
Max Capacity: 400/400 (L/min)
Max Head: 24/24 (m)
Motor Output: 1.5kW
Available Material: GFRPP, PVDF, CFRETFE
-
MPH-453 Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50/60Hz
Max Capacity: 500/500 (L/min)
Max Head: 28/28 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF, CFRETFE
-
MPH-455 Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 40A
Frequency: 50/60Hz
Max Capacity: 600/600 (L/min)
Max Head: 29/31 (m)
Motor Output: 3.75kW
Available Material: GFRPP, PVDF, CFRETFE
-
MPH-552 Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 50A
Frequency: 50/60Hz
Max Capacity: 400/400 (L/min)
Max Head: 24/24 (m)
Motor Output: 1.5kW
Available Material: GFRPP, PVDF, CFRETFE
-
MPH-553 Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 50A
Frequency: 50/60Hz
Max Capacity: 500/500 (L/min)
Max Head: 28/28 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF, CFRETFE
-
MPH-555 Sealless Magnetic Drive Pump
Suction x Discharge: 50A x 50A
Frequency: 50/60Hz
Max Capacity: 600/600 (L/min)
Max Head: 29/31 (m)
Motor Output: 3.75kW
Available Material: GFRPP, PVDF, CFRETFE
-
MPH-563 Sealless Magnetic Drive Pump
Suction x Discharge: 65A x 50A
Frequency: 50/60Hz
Max Capacity: 600/600 (L/min)
Max Head: 20/20 (m)
Motor Output: 2.2kW
Available Material: GFRPP, PVDF, CFRETFE
-
MPH-565 Sealless Magnetic Drive Pump
Suction x Discharge: 65A x 50A
Frequency: 50/60Hz
Max Capacity: 730/800 (L/min)
Max Head: 28/29 (m)
Motor Output: 3.75kW
Available Material: GFRPP, PVDF, CFRETFE
