Self-Priming Chemical Pumps

AD Series Self-Priming Pump

Self-priming chemical pump Malaysia is a positive displacement pump. It works by using a leaky diaphragm in its valve plate with the pump running counterclockwise, pressure builds up on the top side of the diaphragm and causesthe liquid to be drawn up through the intake from an external reservoir. Flow is not dependent on speed; therefore, it can be used at all operating speeds. When flow ceases by closing the valve, oil is returned to the suction side as well as into the tank.

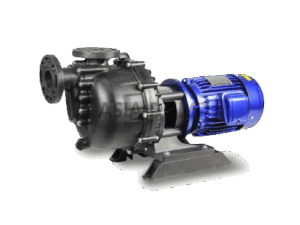

  • AD-40011L Self-Priming Acid and Alkaline Resistant Pump

    Suction x Discharge: 40A x 40A

    Frequency: 50/60Hz

    Max Capacity: 185/200 (L/min)

    Max Head: 7/7.5 (m)

    Motor Output: 0.375kW, 1 Φ

    Available Material: GFRPP, PVDF, CFRETFE

    View More
    Buy Now

  • AD-40012L Self-Priming Acid and Alkaline Resistant Pump

    Suction x Discharge: 40A x 40A

    Frequency: 50/60Hz

    Max Capacity: 240 (L/min)

    Max Head: 13/16 (m)

    Motor Output: 0.75kW, 3 Φ

    Available Material: GFRPP, PVDF, CFRETFE

    View More
    Buy Now

  • AD-40013L Self-Priming Acid and Alkaline Resistant Pump

    Suction x Discharge: 40A x 40A

    Frequency: 50/60Hz

    Max Capacity: 185/200 (L/min)

    Max Head: 7/7.5 (m)

    Motor Output: 0.375kW, 3 Φ

    Available Material: GFRPP, PVDF, CFRETFE

    View More
    Buy Now

  • AD-40014L Self-Priming Acid and Alkaline Resistant Pump

    Suction x Discharge: 40A x 40A

    Frequency: 50/60Hz

    Max Capacity: 210/270 (L/min)

    Max Head: 7/9 (m)

    Motor Output: 0.75kW, 1 Φ

    Available Material: GFRPP, PVDF, CFRETFE

    View More
    Buy Now

  • AD-40022H Self-Priming Acid and Alkaline Resistant Pump

    Suction x Discharge: 40A x 40A

    Frequency: 50/60Hz

    Max Capacity: 300/330 (L/min)

    Max Head: 19/22 (m)

    Motor Output: 1.5kW, 3 Φ

    Available Material: GFRPP, PVDF, CFRETFE

    View More
    Buy Now

  • AD-40022L Self-Priming Acid and Alkaline Resistant Pump

    Suction x Discharge: 40A x 40A

    Frequency: 50/60Hz

    Max Capacity: 280/300 (L/min)

    Max Head: 17/18 (m)

    Motor Output: 1.5kW, 3 Φ

    Available Material: GFRPP, PVDF, CFRETFE

    View More
    Buy Now

  • AD-50032H Self-Priming Acid and Alkaline Resistant Pump

    Suction x Discharge: 50A x 50A

    Frequency: 50/60Hz

    Max Capacity: 390/480 (L/min)

    Max Head: 23/29 (m)

    Motor Output: 2.2kW, 3 Φ

    Available Material: GFRPP, PVDF, CFRETFE

    View More
    Buy Now

  • AD-50032L Self-Priming Acid and Alkaline Resistant Pump

    Suction x Discharge: 50A x 50A

    Frequency: 50/60Hz

    Max Capacity: 410/430 (L/min)

    Max Head: 17/21 (m)

    Motor Output: 2.2kW, 3 Φ

    Available Material: GFRPP, PVDF, CFRETFE

    View More
    Buy Now

  • AD-50052H Self-Priming Acid and Alkaline Resistant Pump

    Suction x Discharge: 50A x 50A

    Frequency: 50/60Hz

    Max Capacity: 450/600 (L/min)

    Max Head: 26/34 (m)

    Motor Output: 3.75kW, 3 Φ

    Available Material: GFRPP, PVDF, CFRETFE

    View More
    Buy Now

  • AD-75052H Self-Priming Acid and Alkaline Resistant Pump

    Suction x Discharge: 80A x 80A

    Frequency: 50/60Hz

    Max Capacity: 800/860 (L/min)

    Max Head: 27/35 (m)

    Motor Output: 3.75kW, 3 Φ

    Available Material: GFRPP, PVDF, CFRETFE

    View More
    Buy Now
